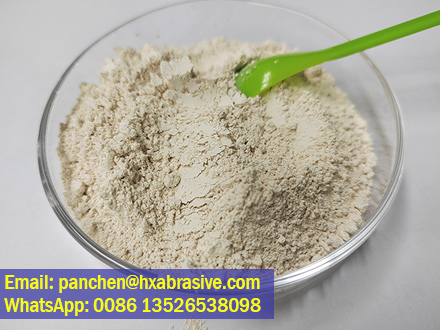

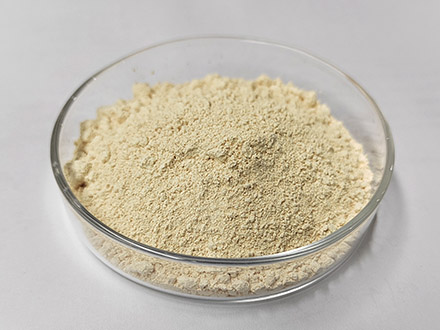

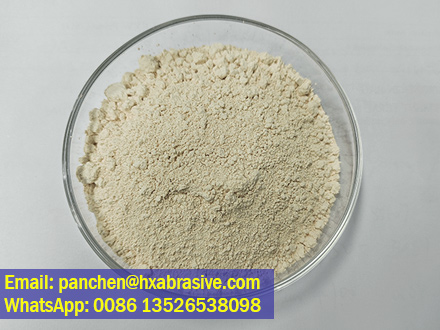

Calcia stabilized zirconia Powder 1-3um for alloy casting
Calcia stabilized zirconia powder 1–3μm is ultrafine refractory powder for precision alloy casting. Calcium oxide stabilizer prevents high-temperature phase change and volume deformation. The 1–3μm fine grain forms dense smooth casting coating to eliminate sand adhesion and casting surface flaws. Featuring high melting point and inertness to molten alloy, it avoids metal contamination. It disperses well in casting slurries, widely used in investment casting face coat for titanium alloy and superalloy parts.
Calcia stabilized zirconia Powder 1-3um for alloy casting Properties:
- High melting point (~2700°C).
- Good thermal shock resistance.
- Moderate ionic conductivity.
- Chemical inertness & corrosion resistance.
- High cost effective compared to Yttrium stabilized zirconia.
Physical properties of Calcia Stabilized Zirconia：
| Specific Gravity | 5.6-5.9 g/cm3 |
| Melting point | 2700 degree |
| Hardness | Vickers 12.5 GPA |
| Stabilization Rate | 70-95% |
Chemical composition of Calcia Stabilized Zirconia powder (%)：
| Item | Guarantee Value | Typical Value |
| ZrO2 + HfO2 | Min. 94 | 95.13 |
| CaO | 3.0-4.5 | 3.93 |
| SiO2 | Max.0.40 | 0.20 |
| Al2O3 | Max.0.40 | 0.08 |
| Fe2O3 | Max.0.15 | 0.06 |
| TiO2 | Max.0.20 | 0.14 |
Particle size of Calcia stabilized zirconia Powder 1-3um for alloy casting：
| Item | Standard Value | Typical Value |
| D10(um) | / | 0.314um |
| D50(um) | 1-3um | 2.369um |
| D90(um) | / | 10.60um |
Other Specification:
60mesh,80mesh,150mesh,200mesh,325mesh,800mesh,
1000mesh,1500mesh,2000mesh,2500mesh,3000mesh,4000mesh,
6000mesh,8000mesh,etc.
- Customized bubble & grain & powder are available upon request.
Calcia Stabilized Zirconia Application：
- Investment casting surface coating, ceramic shell surface layer, precision titanium alloy, nickel-based superalloy and stainless steel casting; high-temperature casting crucible filler, anti-stick sand coating for complex thin-wall alloy castings.
- Fixed diameter nozzle plug, sliding gate, immersion water plug in steel making furnace.
- Zirconia base lightweight fire bricks and shaped refractories.
- High quality kiln furniture.
- Electronic ceramics such as setter plates and saggers.
- Abrasive industry and wear resistance additives such as auto brake lining.
